Lusso 105
Double Glazing

Frameless Double Glazing

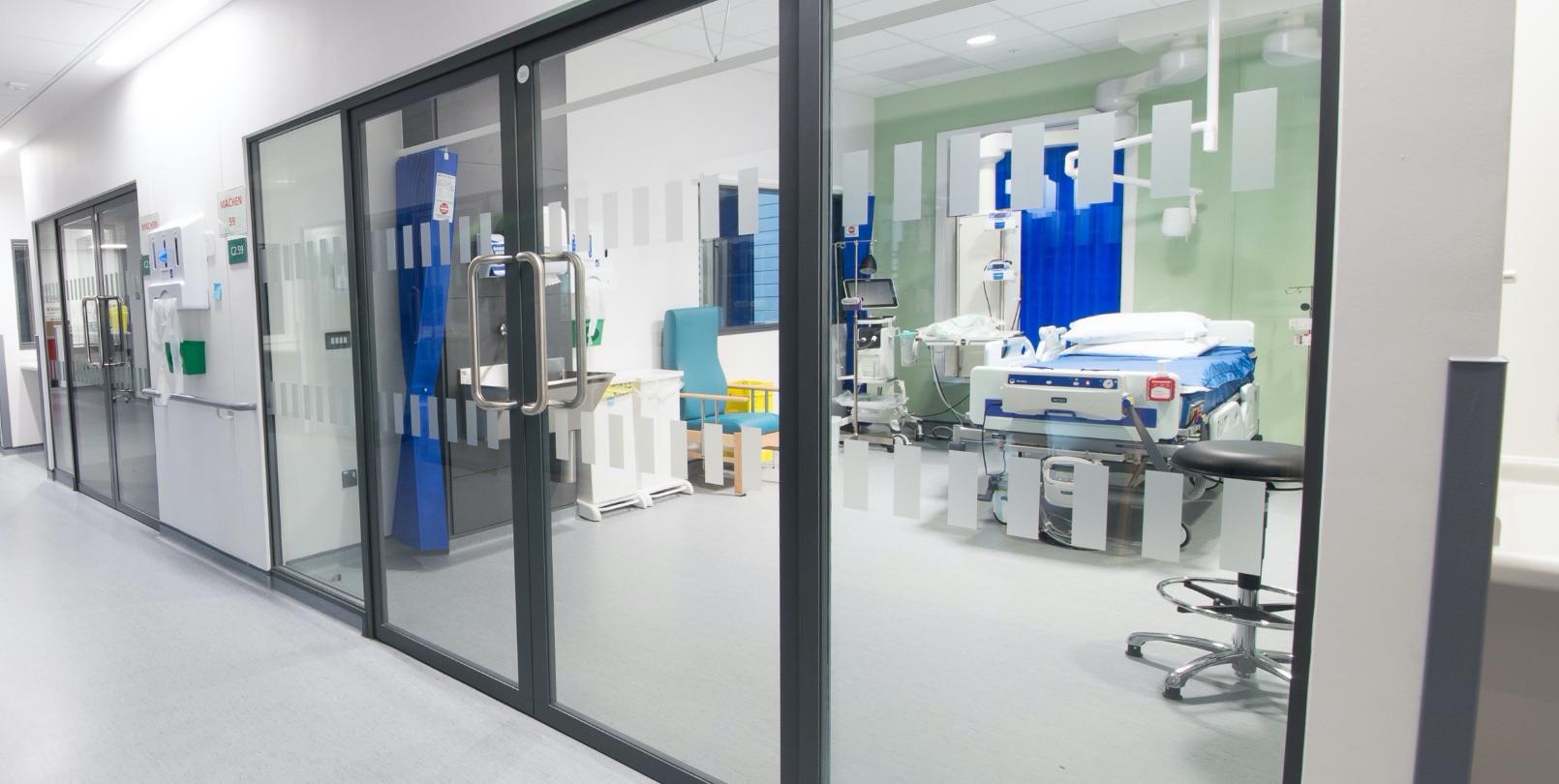

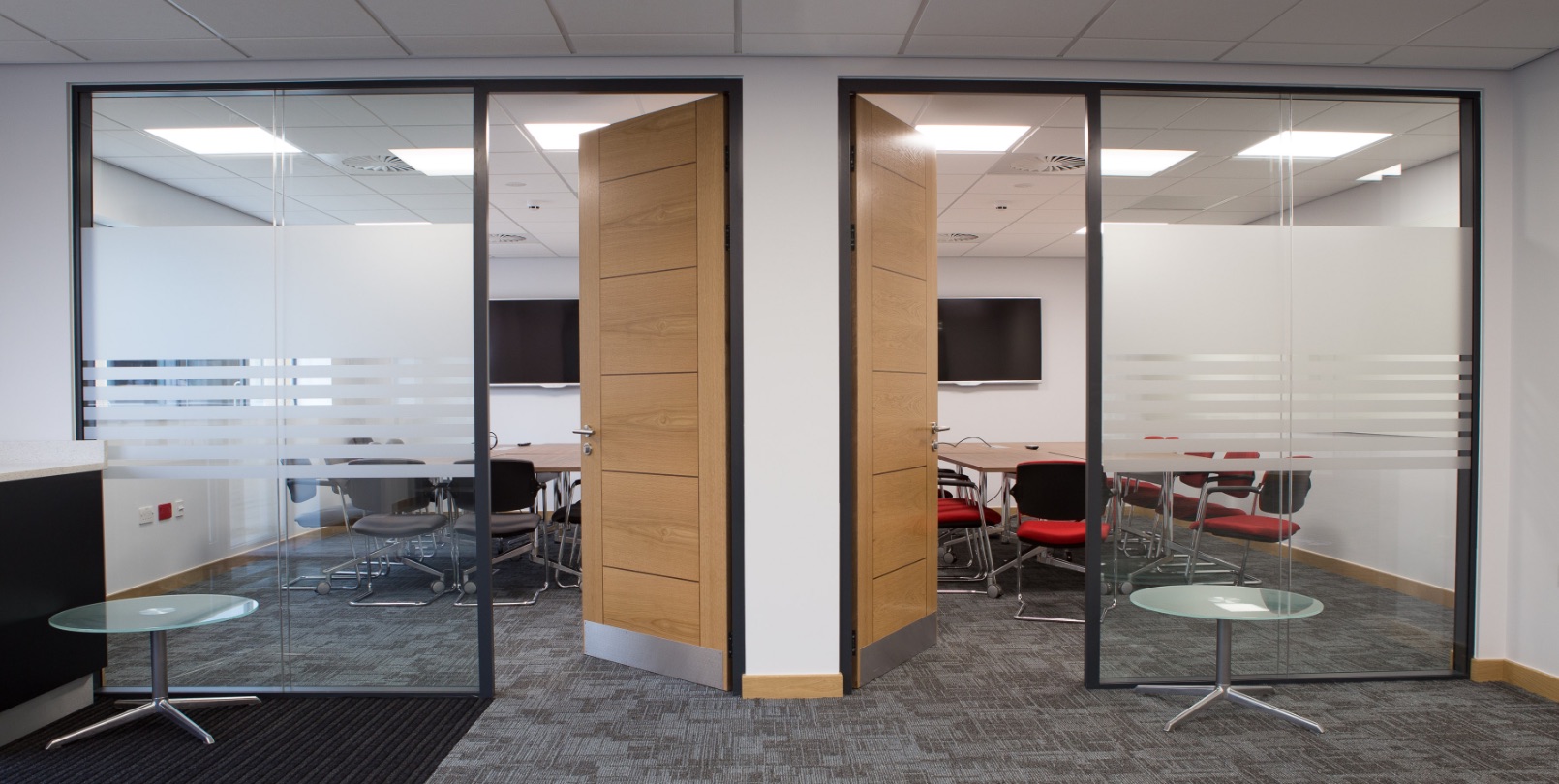

The Lusso 105 double glazing system has slimline minimalistic profiles to complement its contemporary look. Whilst it utilises the frameless glass to glass joint, it can also be manufactured with the option of an interstitial mullion enabling the fitment of integral venetian blinds.

With its superior acoustic, fire, and structural capabilities, our double glazed system is designed to help create high performance structures to suit your needs.

Double Glazing

Supreme quality & versatility

The double glazed partitioning system enables effective separation of areas, making the most of the floor space and natural light within the building. Through the use of varying glass types and thickness, it is possible to achieve soundproofing of up to 54dB. This coupled with our range of privacy features will ensure your space meets every need, from inclusivity within the workplace to confidentiality when needed.

Lusso 105 Double Glazing

Technical specifications

If you are looking to specify Lusso’s range of products, please get in touch and we can discuss your best options with you.

System

105mm thickness

Glass Types

6-12mm & 6-12mm Glass

6-12mm & 15-17mm Glass

15-17mm & 15-17mm Glass

Glass to Glass Joints

I Section Dry Joint

Silicone

Acoustics

Up to 54dB

Deflection

Up to +/- 25mm

Ghost Mullion

Optional

Door Options

Frameless Single Glass Leaf

Framed Single Glass Leaf

Frameless Single Glass Sliding Leaf

Framed Single Glass Sliding Leaf

Frameless Double Glazed Bonded Leaf

Framed Double Glazed Leaf

Timber Leaf

Ironmongery

Full range of Offset Pivots and Stainless Steel finishes available

Framework Finishes

Powder Coated Stock Colours RAL 9006, 9010

Powder Coated to all RAL/BS Colours

Stainless Steel Simulated Colour

Satin Anodised Aluminium

Manifestation

Laser Cut Applied Opal Frost Film

Ceramic Fritting

Digital Graphics

Switch Glass

Blind Options

Integral 15 or 25mm Slimline Blinds with Optional Manual/Remote Control Operation

Double Glazing Technical

Frameless Double Glazing

Technical drawings

All Lusso’s technical drawings are available, on request, to specifiers in CAD format. Please contact us to discuss your requirements.
